Diamond Products
Diatron Powders
Alutron powders (alumina powders) are carefully manufactured to controlledparticle size distributions and specifications, which are highly suitable forany polishing and filler applications where consistency matters most.They are designed to be fully compatible in all water, oil and emulsion-based systems. Hygroscopic in design, Alutron powder minimizes hard agglomerates by allowing for electro-kinetic separation in solution. Our easy dispersibility design allows our customers to experience efficient cutting performance while minimizing potential for undesirable scratches.
DIATRON MTS
DIATRON MTS high purity monocrystal synthetic diamond powders designed to serve a wide range of applications in grinding, tooling, lapping, polishing and Polycrystalline Diamond Cutters (PDC) for oil exploration. These particle are blocky in nature and are high in toughness index to endure high impact and high temperature applications.
Applications
- Hard electronic substrates: Sapphire, GaN, SiC, Ge, AlN
- Hard Ceramics: WC, SiC, Alumina
- Polycrystalline Diamond Cutters (PDC)
- Grinding and Tooling
- Stainless Steel and Metal lapping/polishing
- Metallographic applications
- Optical lens: Silicon, ZnSe, Quartz
- Polishing slurries and compounds
- Filler applications
Characteristics
|
Crystal Structure
|
Octahedral
|
| Color | Gray, yellow, and black |
| Density | 3.53 g/cm3 |
| Hardness | 10 Mohs scale |
| High purity | |
| High thermal conductivity | |
| Low thermal expansion |
Description
| Part Number | Description |
|---|---|
| AMS-MTS-1.0 | DIATRON MTS-1.0 Mono Powder 1.0µm |
| AMS-MTS-3.0 | DIATRON MTS-3.0 Mono Powder 3.0µm |
| AMS-MTS-6.0 | DIATRON MTS-6.0 Mono Powder 6.0µm |
| AMS-DPPTR-6.0 | DIATRON MTS-9.0 Mono Powder 9.0µm |
| AMS-DPPTR-15.0 | DIATRON MTS-15.0 Mono Powder 15.0µm |
| AMS-DPPTR-20.0 | DIATRON MTS-20.0 Mono Powder 20.0µm |
| AMS-DPPTR-30.0 | DIATRON MTS-30.0 Mono Powder 30.0µm |
DIATRON PTR
DIATRON PTR are very friable diamond that does not perform well in a high impact application. However, this polycrystalline diamond abrasive is synthetically designed to provide highest cutting action with its multi-faceted sharp edges that replenish itself during use through micro-fracturing. The most common application is in precision polishing of hard substrates such as sapphire, SiC, GaN, AlN, and other optical crystals and industrial ceramics.
Typical Applications
- Hard electronic substrates: Sapphire, GaN, SiC, Ge, AlN
- Hard Ceramics: WC, SiC, Alumina
- Polycrystalline Diamond Cutters (PDC)
- Grinding and Tooling
- Stainless Steel and Metal lapping/polishing
- Metallographic applications
- Optical lens: Silicon, ZnSe, Quartz
- Polishing slurries and compounds
- Filler applications
Characteristics
|
Crystal Structure
|
Octahedral
|
| Color | Gray and black |
| Density | 3.53 g/cm3 |
| Hardness | 10 Mohs scale |
| High purity | |
| High thermal conductivity | |
| Low thermal expansion |
Description
| Part Number | Description |
|---|---|
| AMS-DPPTR-1.5 | DIATRON PTR-1.5 Poly Powder 1.5µm |
| AMS-DPPTR-2.6 | DIATRON PTR-2.6 Poly Powder 2.6µm |
| AMS-DPPTR-2.8 | DIATRON PTR-2.8 Poly Powder 2.8µm |
| AMS-DPPTR-3.0 | DIATRON PTR-3.0 Poly Powder 3.0µm |
| AMS-DPPTR-6.0 | DIATRON PTR-6.0 Poly Powder 6.0µm |

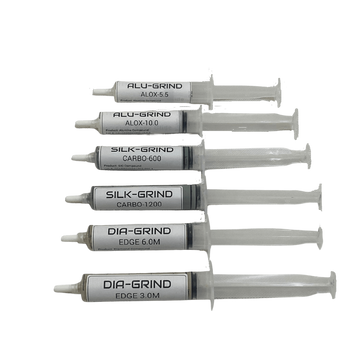

DIA-GRIND COMPOUNDS
DIA-GRIND diamond compounds are high-viscosity pastes made of synthetic diamond particles suspended and uniformly dispersed in self-lubricating binding agents. They are known for their exceptional hardness, tight sizing, and aggressive cutting speeds, making them ideal for applications requiring precision surface treatment.
More details are on DIA-GRIND Compund page.

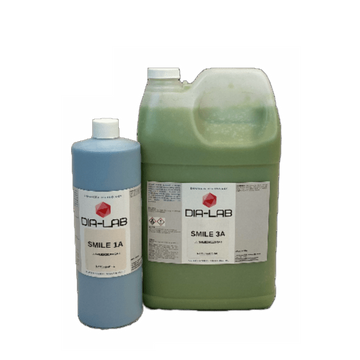

DIA-LAB SLURRIES
DIALAB slurries are ready-to-use water-based and oil- based suspensions designed to be versatile in a wide range of industrial applications including metallographic, optical, metal and ceramic polishing. DIALAB products provide uniform performance with its dispersion technology that allows abrasive particles to stay uniformly dispersed.
Applications
- Metallographic polishing
- Hard Substrate lapping/polishing
- Ceramics
- Optical components
- Metal polishing
Characteristics
| Slurry Type | Water Based Full Suspension |
| Viscosity | 150 Cps |
| pH | Neutral |
| Shelf Life | 1 – 2 years |
Packaging
- 500 ml
- 1 Liter
- 1 Gal
- 5 Gallon pail
Description
DIA-LAB SMILE
| Part Number | Description |
|---|---|
| AMS-SMILE0.25A | DIA-LAB SMILE-0.25A |
| AMS-SMILE1A | DIA-LAB SMILE-1A |
| AMS-SMILE3A | DIA-LAB SMILE-3A |
| AMS-SMILE6A | DIA-LAB SMILE-6A |
| AMS-SMILE9A | DIA-LAB SMILE-9A |
| AMS-SMILE15A | DIA-LAB SMILE-15A |
| AMS-SMILE30A | DIA-LAB SMILE-30A |
Available Diamond Sizes:
- Standard sizes: 0.25um, 1um, 3um, 6um, 9um, 15um, 30um
- Custom sizes available upon request
Description
DIA-LAB SPIRE
| Part Number | Description |
|---|---|
| AMS-SPIRE0.25A | DIA-LAB SPIRE-0.25A |
| AMS-SPIRE1.5A | DIA-LAB SPIRE-1.5A |
| AMS-SPIRE3A | DIA-LAB-SPIRE-3A |
| AMS-SPIRE6A | DIA-LAB SPIRE-6A |
| AMS-SPIRE9A | DIA-LAB SPIRE-9A |
Available Diamond Sizes:
- Standard sizes: 0.25um, 1.5um, 2.5um, 3um, 6um, 9um
- Custom sizes available upon request
