Polishing pure aluminum can present several unique challenges for metallographers. While it is a relatively soft metal compared to harder alloys like tungsten or steel, its susceptibility to smearing, surface defects, and contamination requires precise control over the polishing process. Whether you're preparing aluminum samples for electropolishing or final finishing, understanding the best techniques is crucial for achieving a high-quality finish.
In this article, we will explore the key challenges in polishing pure aluminum, share best practices, and discuss real-world insights in collaboration with University of Florida Department of Material Sciences.
The Challenges of Polishing Pure Aluminum
1. Softness and Susceptibility to Smearing
Pure aluminum is a soft metal compared to harder alloys. While this makes it easy to machine and shape, it also leads to surface smearing during processing, especially when fine abrasives are used. Smearing occurs when material from the surface gets pushed around rather than being removed, creating a non-reflective, dull finish that can hide subsurface damage.
2. Contamination Risks
Aluminum’s surface is highly prone to contamination, especially from polishing pads and abrasive particles. Any foreign material can introduce scratches, which are difficult to remove without going back to previous polishing steps.
3. Subsurface Damage
Aluminum polishing requires careful attention to avoid subsurface damage. If the surface is not adequately prepared or polished, scratches and defects from earlier stages can become buried and not fully removed in the final stages of polishing.
UofF Insights: Optimizing the Polishing Workflow for Aluminum
Stepwise Polishing for Pure Aluminum
Uof F used a multi-step approach to achieve a smooth, high-quality finish on aluminum metal. Starting with a series of steps in grinding (400 grit, 600 grit, and 800 grit SiC papers, respectively) to achieve desired dimensions, 4 steps of diamond suspensions from Allied Material Solutions Inc. (AMS) were used to refine the surface qualilty, which is a critical part of the process when working with soft metals like aluminum. Sadie Wick, a graduate student from UofF highlighted that going finer than 800 grit SiC paper before polishing may lead to higher smearing.
Key Insights from UofF Polishing Process:
🔹 Start with the Right Grit: UofF found that grinding aluminum with 400, 600 and 800-grit SiC paper helped to achieve dimensional tolerances expeditiously. Grinding with grinding papers finer than 800 grit was shown to be ineffective, only increased the chances of smearing.
🔹 Careful Pad Maintenance: Adequately cleaning the pad in between steps using water and isopropanol may help to prevents cross-contamination of abrasives. and the introduction of new scratches during finer polishing stages.
🔹 Backtrack When Necessary: If defects like scratches appeared (as shown in Image 1), UofF would backtrack to earlier polishing steps to correct them before progressing to finer suspensions.
🔹 Final Stages for Smooth Finishing: After reaching a sufficiently refined surface, UofF used the SAGE 0.05A colloidal silica suspension for final polishing. This ensured a smooth, mirror-like finish without introducing new damage.
Polishing Process Breakdown: What You Need to Know
1. Initial Grinding (800-grit SiC Paper)
-
Goal: Remove major scratches and prepare the aluminum surface for finer polishing.
-
Tip: Use 800-grit SiC paper to avoid surface smearing and create a smooth, clean base for polishing.

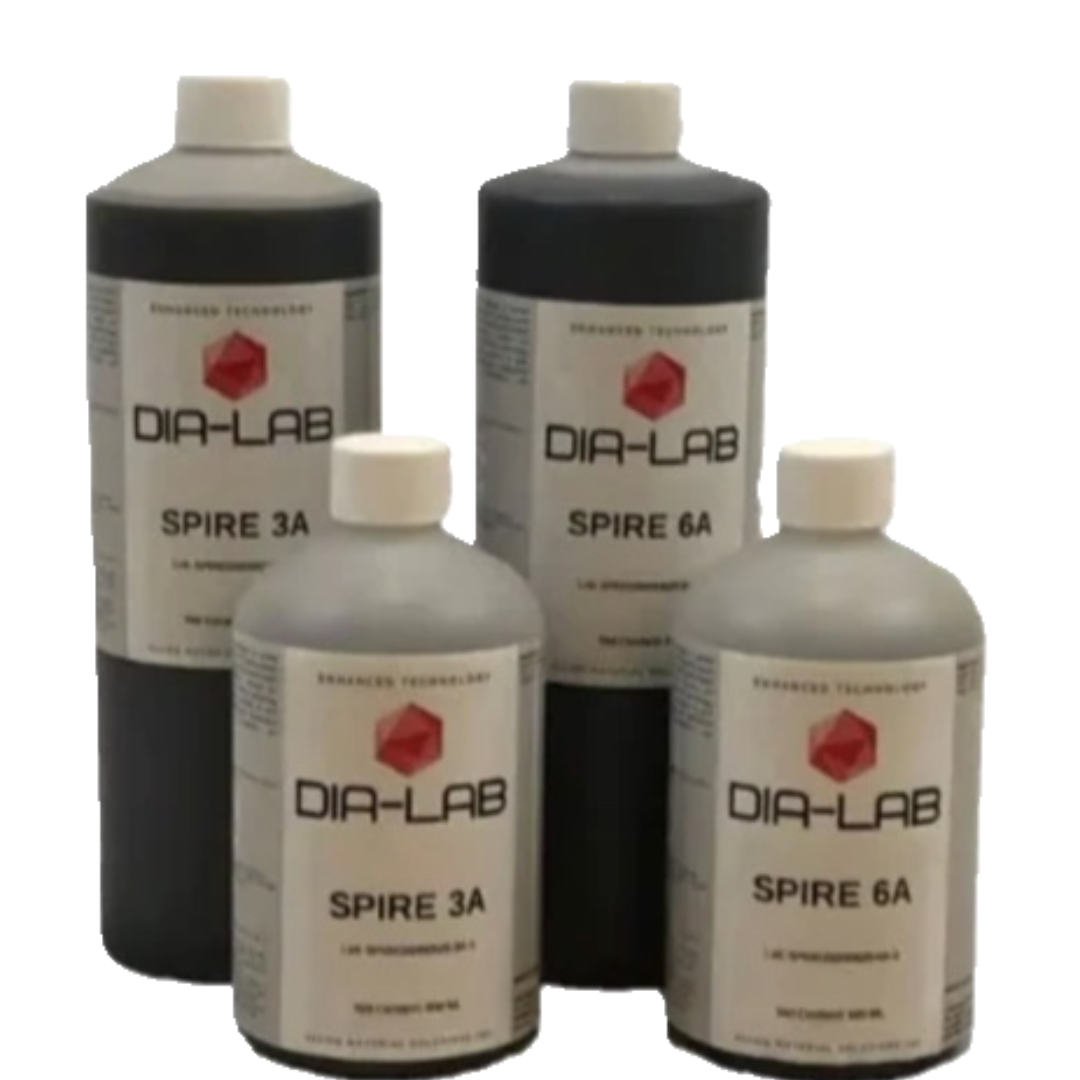

2. Polishing with SPIRE Suspensions
-
SPIRE 6A & 3A: These suspensions are excellent for removing material and preparing the surface. They should be used with pads like Buehler TriDent or TexMet C, at a polishing speed of 70-80 RPM for about 4 minutes.
-
SPIRE 1A & 0.25A: These finer suspensions refine the surface to a high level of smoothness. Sadie used these for 2-minute intervals, increasing the RPM to 120-130 to enhance the final finish.
(Shows initial defects and surface imperfections after the first polishing stages.)
3. Polishing Pad Maintenance
It’s crucial to clean polishing pads between steps to ensure that no abrasive particles or contaminants are transferred to the sample surface. Sadie’s attention to pad cleanliness helped avoid introducing new scratches.
4. Final Polish with SAGE 0.05A
-
Goal: Achieve a mirror-like finish.
-
SAGE 0.05A provides a superior finish and reduces contamination risks during the final polishing stage. Using colloidal silica ensures that the aluminum surface remains smooth without additional stress or defects.
(Shows progress after a few polishing steps, some visible scratches remaining.)
(Shows the final polished surface ready for electropolishing, demonstrating the smooth, defect-free finish.)
Practical Tips for Aluminum Polishing
🔹 Control Pressure and Speed: To prevent smearing and defects, adjust polishing pressure and speed. Start slower for initial stages and increase speed for finer finishes.
🔹 Use Multi-Stage Polishing: Don’t skip steps. Start with coarse abrasives and progress to finer suspensions to gradually remove material and refine the surface.
🔹 Inspect the Surface: Use microscopy after each polishing step to check for subsurface damage or imperfections. Early detection of issues allows for corrective action before moving forward.
🔹 Clean Regularly: Regularly clean your pads and equipment to prevent cross-contamination and maintain a consistent polishing process.
How to Incorporate SAGE 0.05A and SPIRE Slurries for Better Results
At AMS, our SAGE 0.05A and SPIRE suspensions were designed to offer high-performance solutions for soft metals like aluminum. By using SAGE 0.05A for final polishing and SPIRE suspensions for progressive material removal, you can achieve consistent and smooth finishes without the common problems of contamination or smearing.
These slurries are particularly effective for final-stage finishing where you need a high-quality, mirror-like surface—whether for electropolishing or microscopic analysis.
Final Thoughts
Polishing pure aluminum requires a methodical approach, but with the right techniques, tools and polishing products, one can achieve a highly reflective finish suitable metallurgical analysis. Thanks to in-lab testing at UofF, managing common issues like smearing, scratches, and contamination can be better managed and controlled. By following a structured workflow with proper abrasives and polishing steps, you can ensure high-quality results every time.
